NETWORK IP CAMERA
HIP-HP5545

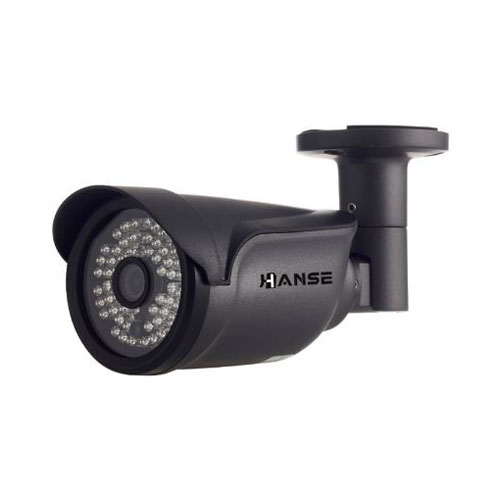

5MP NETWORK IP IR BULLET CAMERA

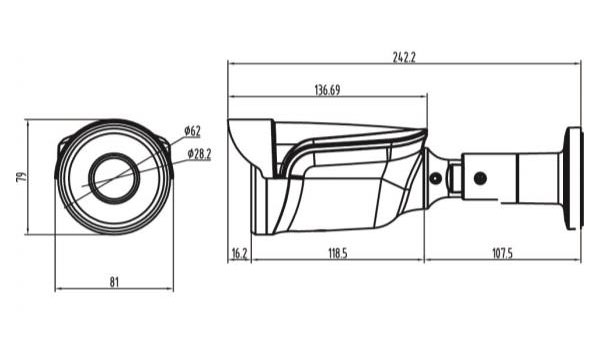

Dimension

Features

  • Sony STARVIS 5.69MP Image Sensor
  • Ultra low light color camera(0.01lux/F1.2)
  • Triple codec(H.265, H.264, MJPEG)
  • Triple Stream
  • Max 30fps @ all resolution
  • Support Onvif/PoE/External Video
  • DOL True WDR
  • IR LED : 54 units(50m)
  • True Day & Night
  • Fixed Lens 3.6mm
  • IP66 Weatherproof

Camera Specifications

IMAGE Image Sensor Sony Starvis 5.69MP(1/2,8”) Image Sensor
Scan System Progressive Scan
Total Pixels 2704(H) x 2104(V), 5.68 Mega Pixels
Effective Pixels 2616(H) x 1964(V),58.13 Mega Pixels
Function Day & Night Auto / Day(Color) / Night(BW)
Privacy Area On / Off (8 Programmable Zones)
Motion Detection 432 Zone (On / Off, 1~5step)
W D R DOL True WDR
3D DNR 2DNR, 3DNR
S/N Ratio More 52dB
BLC HLC, BLC
Digital Zoom 16x
Degof/LDS/Mirror On / Off
White Balance Auto/Push/Indoor/Outdoor/Fluorescent/User
Lens Focal Length Fixed Lens 3.6mm
IR LEDs IR LEDs 54 units
Electrical Power Supply DC12[V] ±10% / Max 750mA
Environ-mental Operating Temp. -10℃~ +50℃
Preservation Temp. -20℃~ +60℃
Humidity 0% ~ 80%
Mecha-nical Weight. Approx. 750g(W/Sunshield & Bracket)

*Specification and Design are subject to change without notice

Network Specifications

System OS Embedded Linux
Network Interface RJ45 10/100 Base-T
Protocol TCP/IP,UDP/IP,RTP,RTSP,RTCP,NTP,HTTP,DHCP,FTP,SMTP,DNS,DDNS
Onvif ver17.06
DDNS Iplinker.net
Simultaneous Access Max. 10 user
Video Compress Format H.265, H.264, MJPEG
Resolution 2560×1920/2560×1440/2048×1536/1600×1200/1920×1080/1280×1024/1280×960/
640×480/640×360/320×240/320×180
Frame Rate Max. 30fps @all resolution
Streaming Triple Stream (Stream1,2,3), RTP/RTSP, UnicastRTP, Multicast RTP
Audio Compress Format G.711 u-law
Streaming Two way
Event Sensor In 1(NC/NO)
Alarm Out 1 (Digital Output, Open Collector)
Web Browser OS Windows 7, 8, 10
Manager IE(over 11), Firefox, Safari, Opera
Viewer IE only (Active-X)
5M IP CAMERA IP Network Camera

HIP-HP5545
